Name: Circular Outdoor Rj45 Connector Male Waterproof IP44 IP65 For LED Screen
Brand: Jnicon
Price: 1 USD

Brand Name : Jnicon

Model Number : Signal Male Connector

Certification : UL , CE, CQC , ROHS

Place of Origin : Shenzhen China

MOQ : 100 (10 Pairs of samples)

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram ,Paypal

Supply Ability : 10000 pcs / day

Delivery Time : 3 -5 days

Packaging Details : 1.Plastic bag;2.Carton;3.As per customer's requirements

Name : Signal Male Connector

Resistance : < 30mΩ

Material : Mental & Plastic

IP Rating : IP44 & IP65

Application : Signal Transmission

Pin : 8Pin

Contact Now

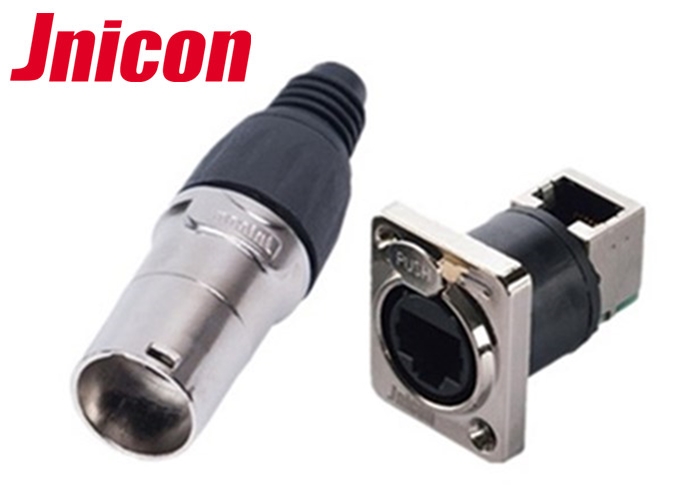

Jnicon Circular RJ45 Waterproof Connector Male , IP44 IP65 Signal Connector

More Information of RJ45 Waterproof Connector

RJ45 waterproof connector belongs to signal connector for signal transmission
Also called waterproof circular connector
Wildly used in led screen whether it is indoor environment or outdoor environment
It require 2sets powercon connector and 2sets signal connector in a 500x500 led screen ,you can make the order per your side
For protection level : IP44 & IP65
For indoor environment , IP44 is ok ; For ourdoor environment , IP65 is better
Ususlly signal male and female connector use together

Parameter

Name	Signal Male Connector
Number of contacts	8Pin
Resistance	<30mΩ
IP Rating	IP44 / IP65
Cable Specification	26 - 24 AWG
Diameter	φ5.5mm - φ7mm
Operating temperature	-25℃ - 80℃
Connecting Type	Plug / Unplug
Housing	Mental and Plastic
Material of Needles	Copper alloy
Flame Rating	UL94 - V0
Application	LED Screen signal transmission

More Service

For RJ45 waterproof connector , we can make the cable for male connector .
Cable specification : as the parameter showed above
Length of cable : per your requirement
More special requirement , like splitter , material of cable , just feel free to contact me

RJ45 Plug And Socket

Circular Outdoor Rj45 Connector Male Waterproof IP44 IP65 For LED Screen

Work Process From Us

Deal with inquiry in 24 hours
Confirm specification of waterproof circular connector , like current , voltage , material of cable , length of cable , specification of cable etc .
Then provide the delivery time according to order and production department ( usually the delivery time about 5 - 7 day after payment )
inform the message via email when the good sent out
